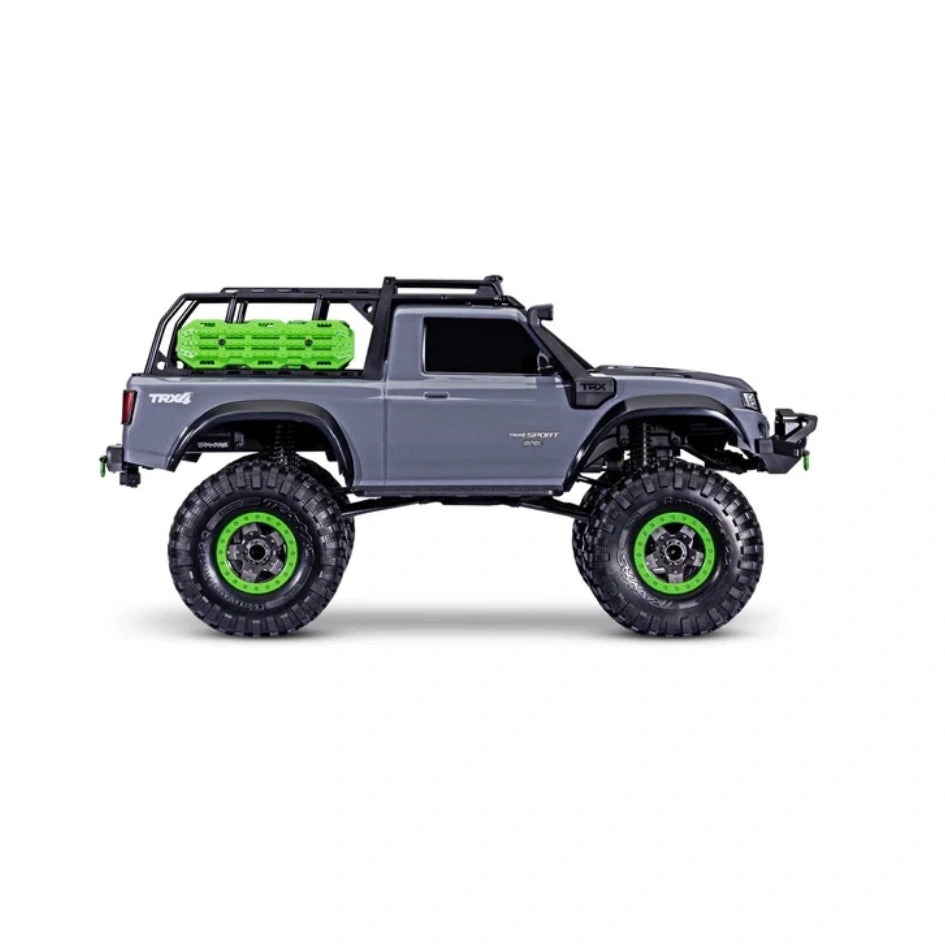

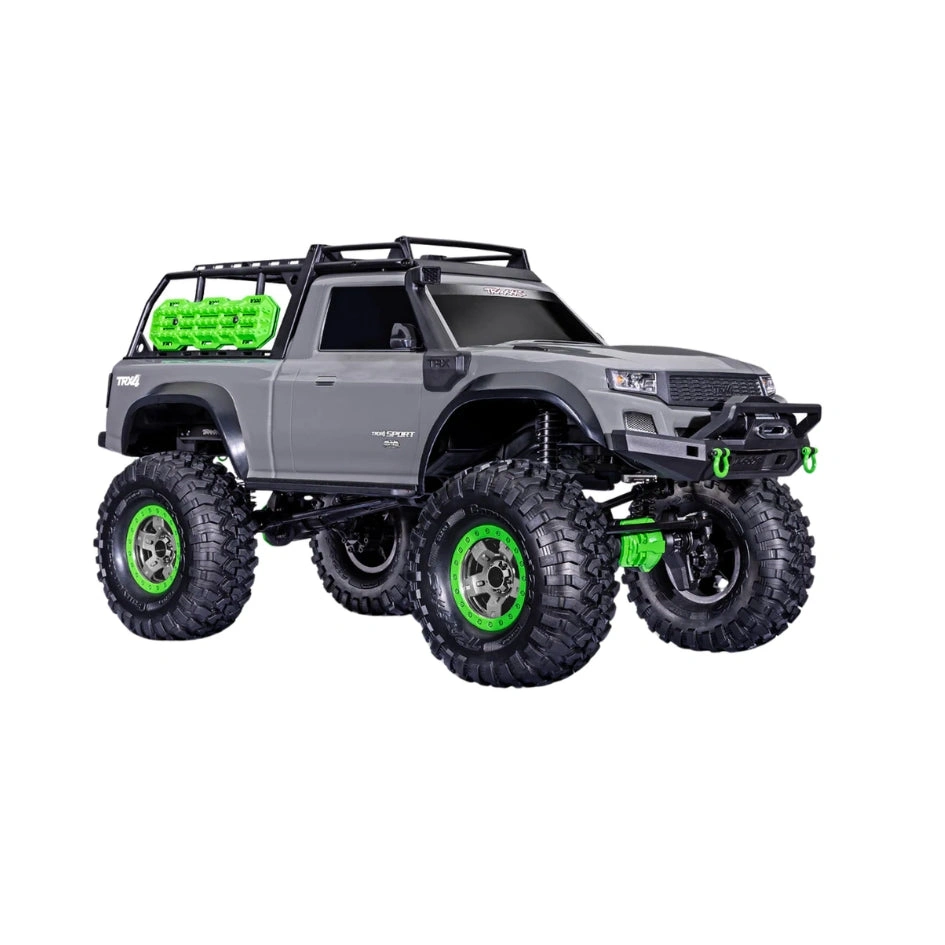

Even the toughest off-road challenges have met their match with TRX-4® Sport High Trail™ Edition. A factory-installed Long Arm Lift Kit amplifies TRX-4 Sport’s performance-focused all-terrain capability with even more ground clearance. High-angle bumpers and fully-locked axles provide nearly unstoppable climbing versatility with the show-stopping looks of the High Trail Edition’s rugged Expedition Rack and scale accessories.
MODEL 82044-4: 1/10 Scale 4X4 High Trail Edition Truck, Fully-Assembled, Waterproof Electronics,
Ready-To-Drive®, with TQ™ 2.4 GHz 2-Channel Radio System, XL-5 HV Speed Control,
Titan® 550 motor, Painted Body, and Scale Accessories.
Length: | 22 inches (564 mm) |
---|
Front Track: | 10.6 inches (270 mm) |
---|
Rear Track: | 10.6 inches (270 mm) |
---|
Center Ground Clearance: | 4 inches (99 mm) |
---|
Weight (w/o battery): | 7.04 pounds (3.20 kg) |
---|
Height (overall): | 10.8 inches (275 mm) |
---|
Wheelbase: | 12.3 inches (312 mm) |
---|
Approach Angle: | 62.8° |
---|
Departure Angle: | 54.7° |
---|
Breakover Angle: | 79.3° |
---|
Front Shock Length: | 4.33 inches (110 mm) |
---|
Rear Shock Length: | 4.33 inches (110 mm) |
---|
Front Wheels: | 2.2″ x 1.34″ (56 x 34 mm) |
---|
Rear Wheels: | 2.2″ x 1.34″ (56 x 34 mm) |
---|
Front Tires: | 5.3″ x 2.14″ (135 x 54 mm) |
---|
Rear Tires: | 5.3″ x 2.14″ (135 x 54 mm) |
---|
Hex Size: | 12 mm |
---|
Speed Control: | XL-5™ HV |
---|
Motor (electric): | 21T reverse rotation |
---|
Transmission: | Single speed |
---|
Gear Pitch: | 32 pitch |
---|
Differential Type: | Spool (no differential) |
---|

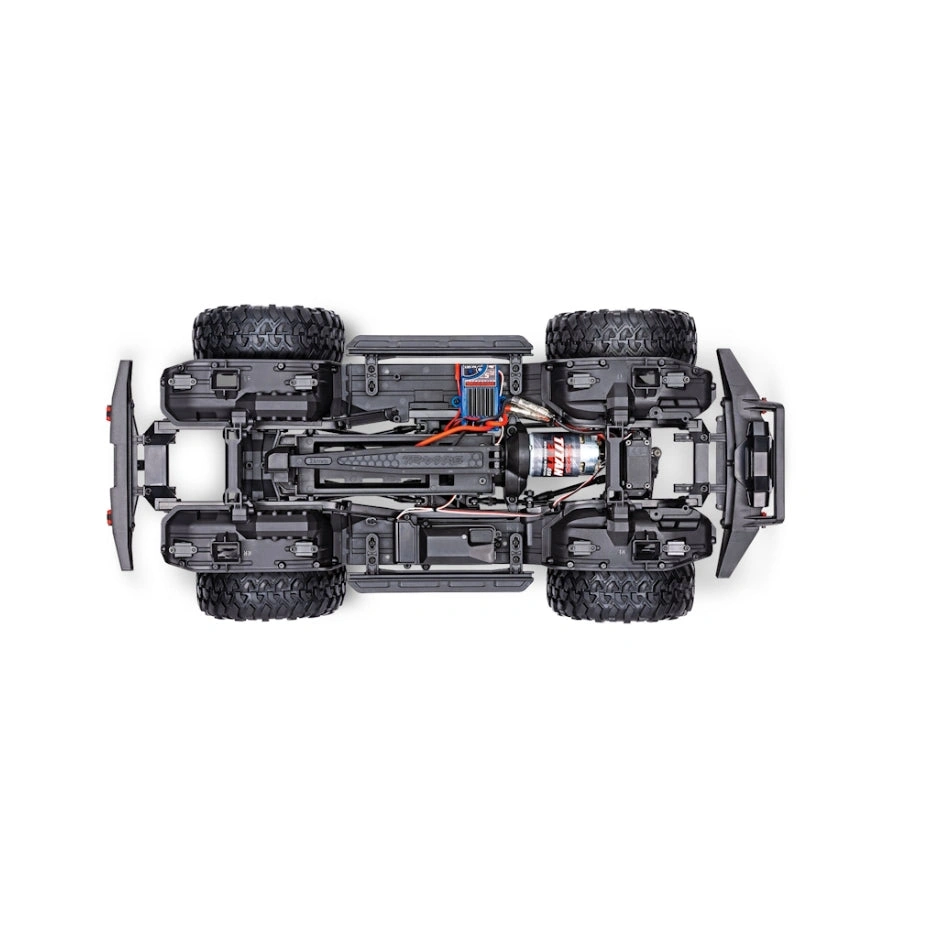

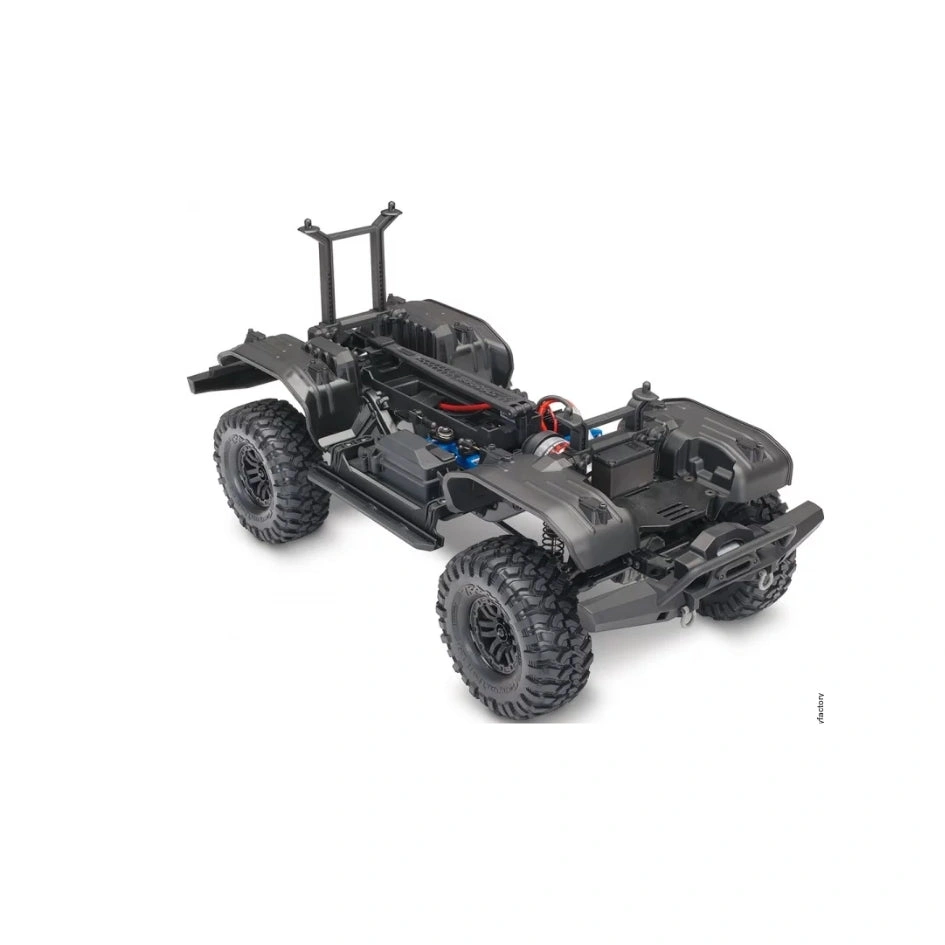

Chassis Structure / Material: | Steel ladder frame with Nylon composite crossmembers |
---|
Brake Type: | Electronic “Hill Hold” |
---|
Drive System: | Shaft driven 4WD |
---|
Steering: | Chassis mounted servo |
---|
Servo: | 2075X metal gear |
---|
Transmitter: | TQ™ 2.4 GHz 2-channel transmitter |
---|
Receiver: | 6519 |
---|
Skill Level: | 1 |
---|
Battery Tray: | 159 L x 47 W x 23/26 mm H |
---|
